컨테이너 검색기 시스템
Container(Trailer) X-ray Inspection System(LAROSCAN Series)
-

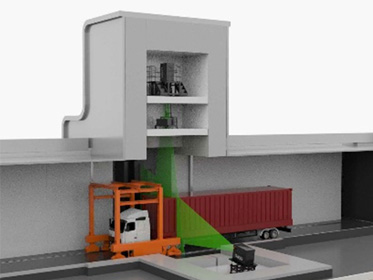

- Container Inspection System
-
-

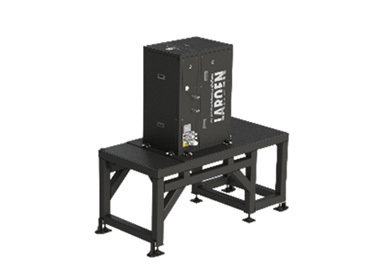

- X-ray Head Unit(Horizontal)
-
-

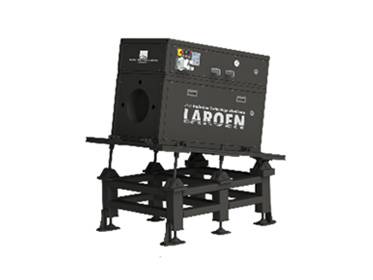

- X-ray Head Unit(Vertical)
-
Specification
-
- LAROSCAN-S9
-
-
-
- Category
- High Energy X-ray Cargo Inspection System
-
- Model
- LAROSCAN-S9
-
- Specifications
-
·X-ray Energy : Dual 9/6MeV(LAROEN S9)
·Tunnel size : 50m(L)x6.7m(W)x5.8m(H)
·Penetration : 430㎜
·Wire resolution(copper wire) : 0.6㎜
·Vechicle Throughout : up to 12per hour
-
Specification
| Items | Specifications | Options |
|---|---|---|
| X-ray Generator(LAROEN S9) |
·Dual Energy : 9/6MeV ·Focal Spot Size : ＜ 2㎜ ·Beam Symmetry : ≤ ±5% within the range of ±7º from beam center ·Leaking Radiation : ＜ 0.002% |
·Dual Energy, 9/5MeV ·Super Ultra Leakage ·Radiation : ＜ 0.0003% |
| Detector System |
·CdWO4 Photodiode type(Coupled Scintillator) ·Cell Pitch Size / Efficiency : 4.6㎜ / adove 70% ·Pixel : Horizontal_1408(44*32), Vertical_1088(34*32) ·Alignment Accuracy : ±1㎜ ·Dual Energy Processing time : ＜ 3second |
|
| Moving System |
·Overall Size : 5.0m(L)x5.6m(W)x1.2m(h) ·Nominal Scan speed 350㎜/sec(Variable) ·Throughput : 12Trailer/hour ·Traction : Max. 70T |
·Max. 450mm/s ·100T |
| X-ray Image |
·Real-time image manipulation ·Histogram Equallization ·Edge Enhancement ·NUREG-700 Rev2 Human System |
|
| Server Network | ·＞ 1Gbps | |
| Operation | ·Temp : 0~60℃, humidity : 5~95%, Input voltage : 3phase, 380V, 50/60㎐ | ·3phase 420V, 50/60㎐ |
| Training | ·RTX corporation |
LAROSCAN series for CIS systetm/Line Up
| Model | Energy | Operation Type |
Model | Energy | Operation Type |
|---|---|---|---|---|---|
| LAROSCAN-S9 | 9MeV (option: Dual Energy) |
Fixed type | LAROSCAN-S6 | 6MeV (option: Dual Energy) |
Fixed type |
| LAROSCAN-S4 | 4MeV (option: Dual Energy) |
Fixed type | LAROGENT-S9 | 9MeV (option: Dual Energy) |
Gentry type |
| LAROGENT-S6 | 6MeV (option: Dual Energy) |
Gentry type | LAROGENT-S4 | 4MeV (option: Dual Energy) |
Gentry type |
| LAROGENT-S2 | 2MeV (option: Dual Energy) |
Gentry type | LARODRIVE-S6 | 6MeV (option: Dual Energy) |
Drive-through type |
